DES 子密钥逆推初始密钥 – 作者:奶茶小仙女儿

1.简介

如果在DES加密中两轮或两轮以上的子密钥泄漏,则几乎可以完全逆推出初始密钥。但由于有效位仅为56bit,所以密钥只能恢复56bit,还有剩下的8bit未知,但2^8 仅有256种情况,完全可以使用暴力破解

然而暴力破解的前提是需要有一个标志来告诉我们结果是否准确,在有些情况中暴力破解的结果是没有办法判断准确与否的。

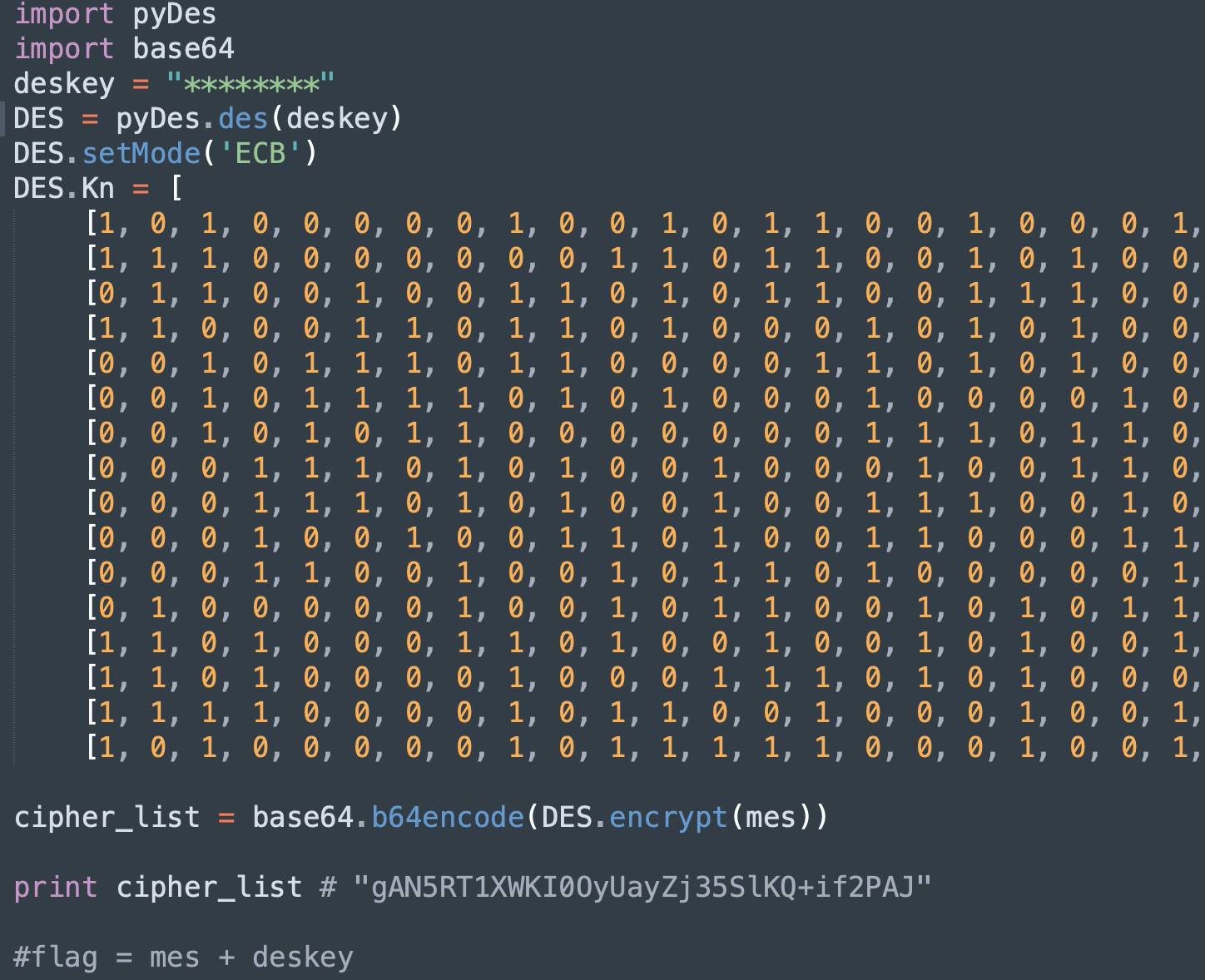

此处使用湖湘杯中的一道密码学题目来做示例,题目如下:


import pyDes
import base64
deskey = "********"
DES = pyDes.des(deskey)
DES.setMode('ECB')
DES.Kn = [
    [1, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 1, 1, 0, 0, 1, 0, 0, 0, 1, 1, 0, 0, 0, 1, 1, 1, 0, 1, 1, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 1, 1, 0, 0, 0],
    [1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 1, 1, 0, 0, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 0, 1, 1, 0],
    [0, 1, 1, 0, 0, 1, 0, 0, 1, 1, 0, 1, 0, 1, 1, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 0, 1, 0, 0],
    [1, 1, 0, 0, 0, 1, 1, 0, 1, 1, 0, 1, 0, 0, 0, 1, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 1, 0, 1, 0, 0, 0, 1, 1, 0, 1, 0, 0, 1, 1],
    [0, 0, 1, 0, 1, 1, 1, 0, 1, 1, 0, 0, 0, 0, 1, 1, 0, 1, 0, 1, 0, 0, 1, 1, 0, 1, 1, 0, 0, 1, 1, 1, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1],
    [0, 0, 1, 0, 1, 1, 1, 1, 0, 1, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 1, 1, 1, 0, 1, 0, 1, 0, 1, 1, 0, 0, 1, 0, 0, 1, 0, 1, 0, 1, 0, 0, 1, 0, 1, 0],
    [0, 0, 1, 0, 1, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 1, 1, 0, 0, 1, 0, 0, 1, 0, 1, 1, 0, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 1, 0],
    [0, 0, 0, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 1, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 1, 1, 0, 0, 1, 1, 0],
    [0, 0, 0, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 0, 0, 1, 1, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0],
    [0, 0, 0, 1, 0, 0, 1, 0, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 0, 0, 1, 1, 0, 1, 0, 1, 1, 0, 0, 0, 0, 1, 1, 0, 1, 0, 0, 1, 0, 0, 1, 0, 1, 1, 1, 0, 0, 0],
    [0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 1, 0, 1, 1, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1],
    [0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 1, 1, 0, 1, 0, 0, 0, 0, 1, 1, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 1, 1, 1, 1, 0],
    [1, 1, 0, 1, 0, 0, 0, 1, 1, 0, 1, 0, 0, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 1, 1, 0, 0, 1, 1, 1, 1, 0, 0, 1, 0, 0],
    [1, 1, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 1, 1, 0, 1, 0, 1, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 1],
    [1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 1, 0, 1, 1, 0, 0, 0, 0, 1, 1, 1, 0, 1, 0, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 0, 1],
    [1, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 0, 0, 1, 0, 0, 1, 1, 0,1, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 1, 1]]
cipher_list = base64.b64encode(DES.encrypt(mes))
print cipher_list # "gAN5RT1XWKI0OyUayZj35SlKQ+if2PAJ"
#flag = mes + deskey

可以看到题目中提供了DES的16轮子密钥,而题目要求将加密前的消息和DES key作为flag提交。

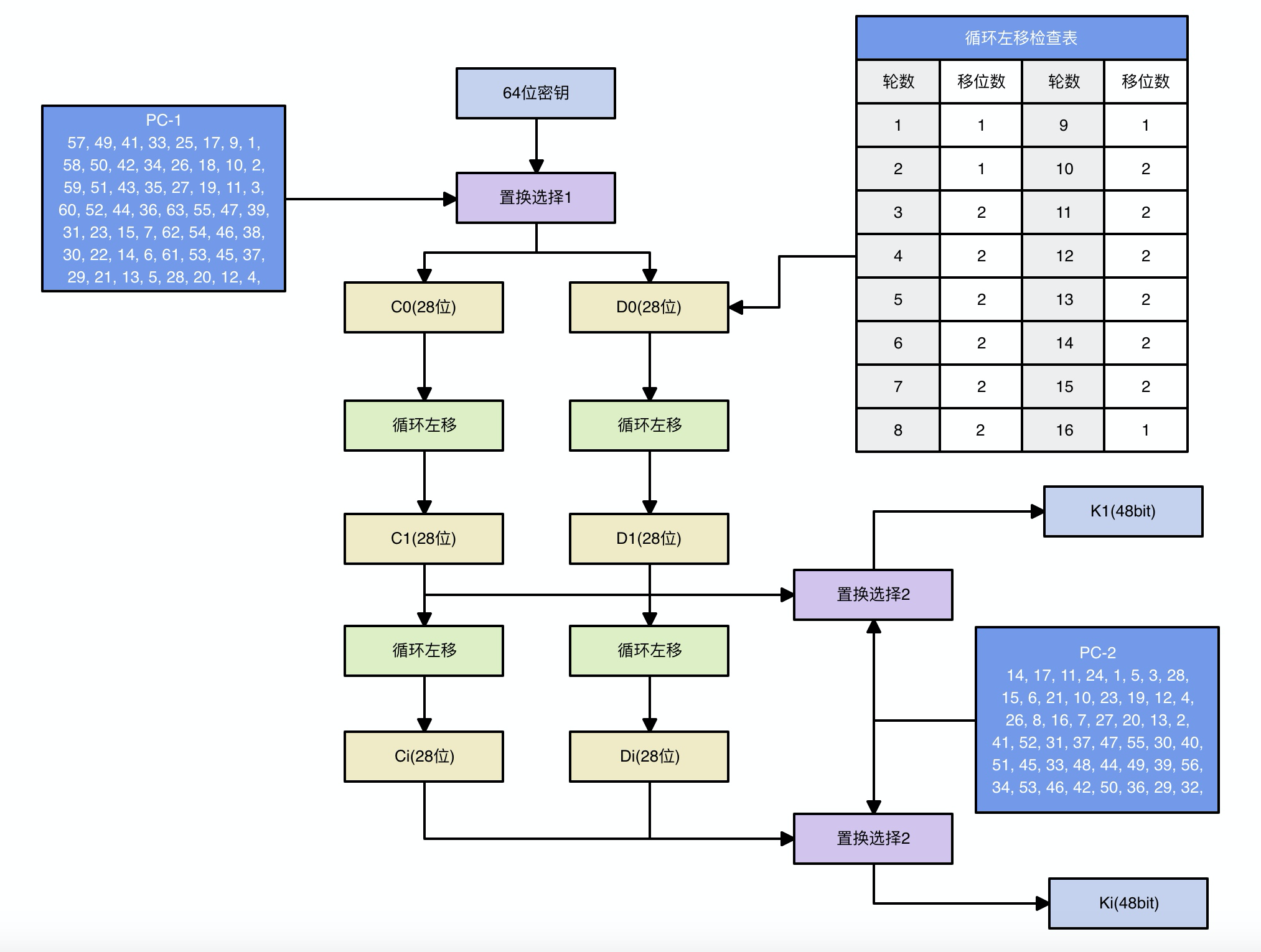

2.DES 子密钥生成

首先我们来回顾一下DES的子密钥生成过程:

在DES加密算法中,密钥的长度为64位,但是密钥字符的每个二进制第八位设置为奇偶校验位,因此密钥的实际长度为56位。DES加密共执行16次迭代,每次迭代过程的数据长度为48位,因此需要16个48位的子密钥来进行加密,生成子密钥的过程如下:


举例说明:

密钥 K = 0001001100110100010101110111100110011011101111001101111111110001

需经过PC-1表置换,即执行置换选择1过程,PC-1表为8行7列的表,密钥K经PC-1后变为56位数据K’:

K'(56位)= 11110000110011001010101011110101010101100110011110001111

取K’的前28位作为C0,则有

C0(28位)= 1111000011001100101010101111

取K’的后28位作为D0,则有

D0(28位)= 0101010101100110011110001111

获得C0,D0后进行左移操作需要查询移动位数表后得知左移位数为1。

C0左移1位为C1:

C1(28位) = 1110000110011001010101011111

D0左移1位为D1:

D1(28位) = 1010101011001100111100011110

将C1和D1合并后,经过PC-2表置换得到子密钥K1,PC-2表中去除了第9,18,22,25,35,38,43,54位。由于PC-2表为6*8的表,经PC-2置换后的数据为48位,置换后得到密钥K1:

K1(48位)= 000110110000001011101111111111000111000001110010

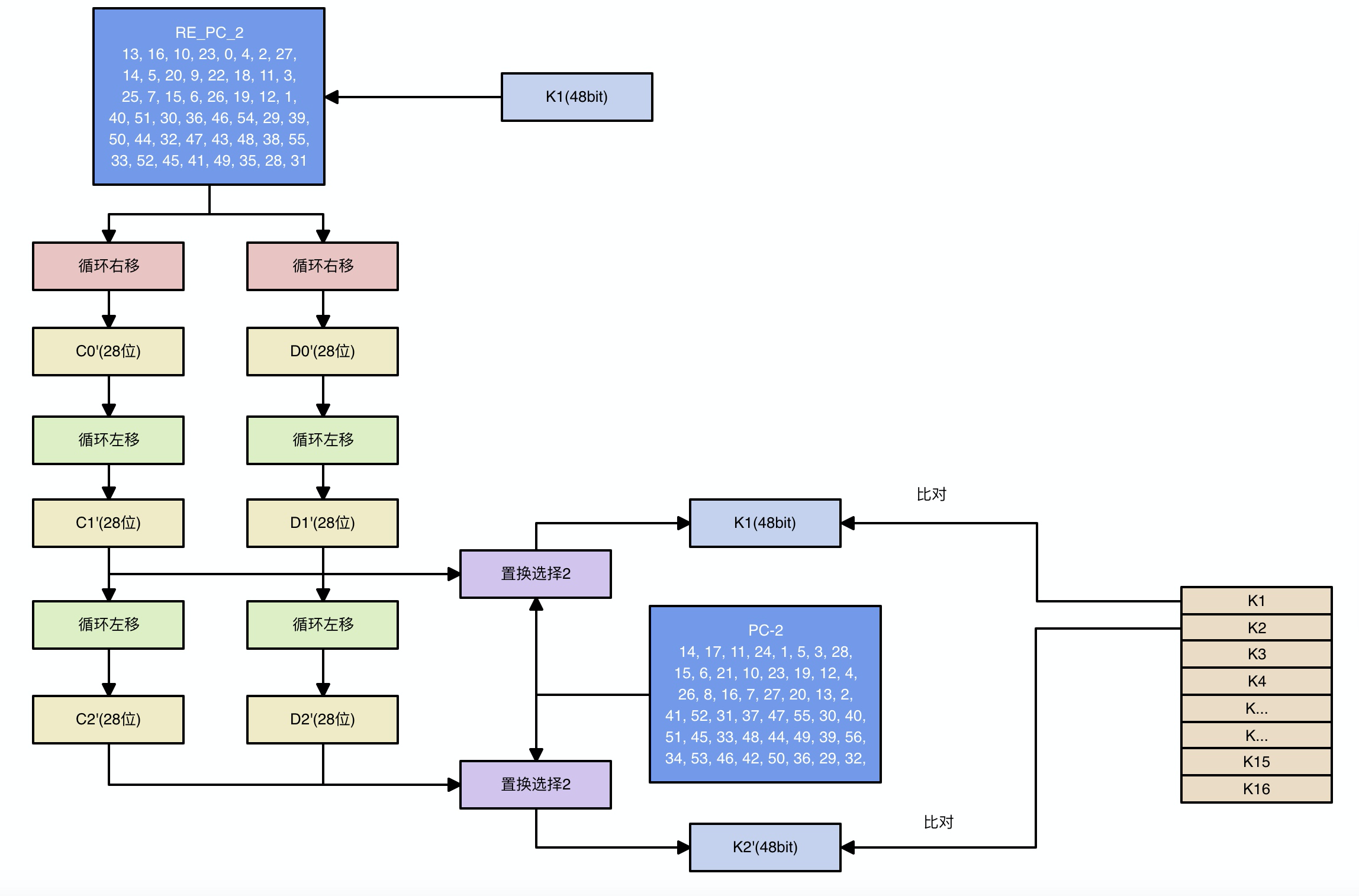

3.DES 子密钥逆推

根据题目条件,我们得到的是16轮子密钥Ki(Ci+Di)。


我们首先对Ki使用逆PC_2盒,得到带未知变量的netss(56比特的C+D)

代码如下:

def ReSubstitution_PC_2_Box(keyfield, sub):
    newkeyfield = ['*'] * 56
    for i in range(len(sub)):
        newkeyfield[sub[i]] = keyfield[i]
    newkeyfield = ''.join(newkeyfield)
    return newkeyfield

接着对C,D进行循环右移一位,还原netss:

    C, D = netss[:28], netss[28:]
    C = C[-1:] + C[:-1]
    D = D[-1:] + D[:-1]
    netss = C + D

使用netss生成带未知变量的十六轮子密钥:

def enkey(netss):  # 生成子密钥

    C, D = netss[:28], netss[28:]
    key = []
    for i in range(16):  # 十六轮子密钥生成
        C, D, keyone = SubkeyGeneration(i, C, D)
        key.append(keyone)
    return key

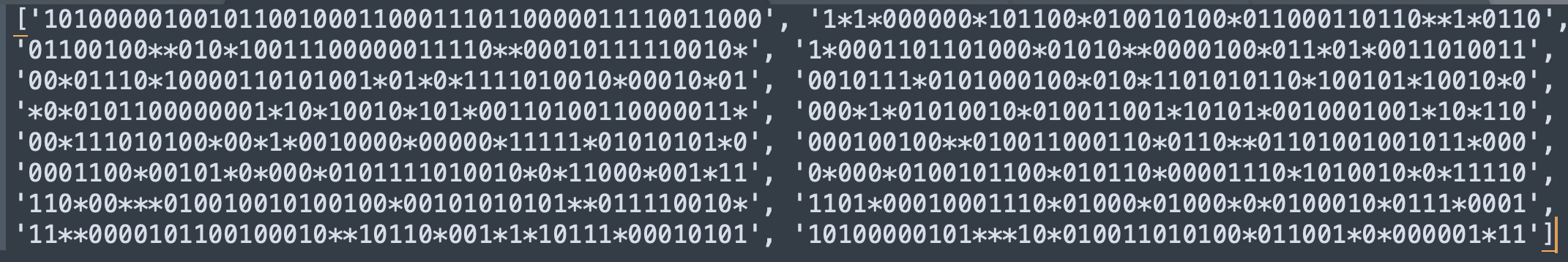

image.png我们将生成带未知变量的16子密钥和题目给定的子密钥进行比对,获取真实netss:

def dekey(netss):  # 还原子密钥

    netss = ReSubstitution_PC_2_Box(netss, RE_PC_2)
    C, D = netss[:28], netss[28:]
    C = C[-1:] + C[:-1]
    D = D[-1:] + D[:-1]
    netss = C + D
    real_netss = ''
    num = 0
    for i in netss:
        if i != '*':
            real_netss += i
        else:
            real_netss += alphabet[num]
            num += 1
    keys = enkey(real_netss)
    key_dic = {}
    for i in range(len(keys)):
        for j in range(48):
            if keys[i][j] != real_key[i][j]:
                key_dic[keys[i][j]] = real_key[i][j]
    for i in key_dic:
        real_netss = real_netss.replace(i, key_dic[i])
    return real_netss

此时我们已经得到了一个不带未知变量的real_netss

00000001*11111100*110*00*000011001*01*1101*0001011000*01
00000000111111110011101000001011001001111010000101100000

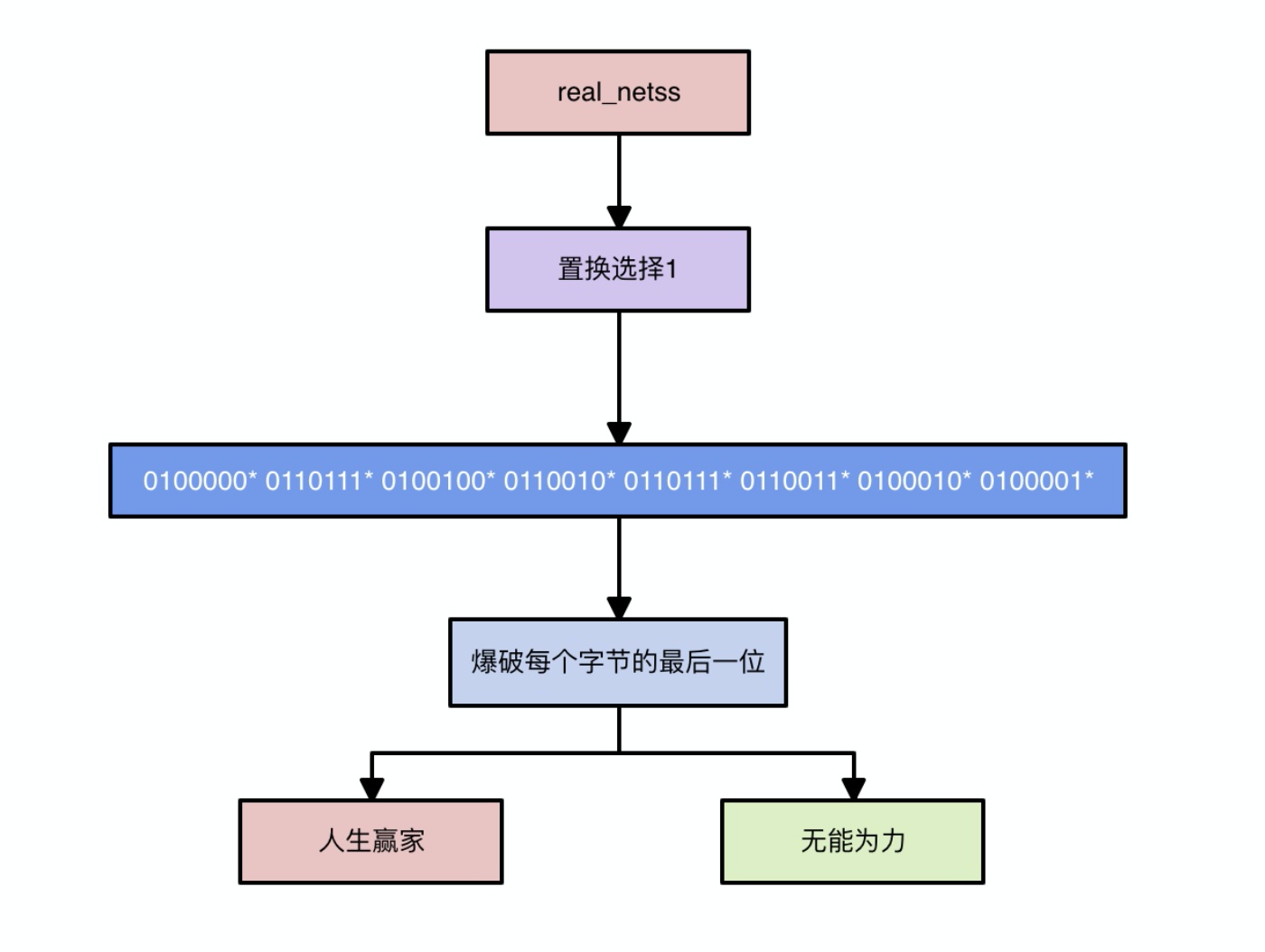

image.png接下来要做的就是还原逆PC_1盒:

def ReSubstitution_PC_1_Box(keyfield, sub):

    newkeyfield = ['*'] * 64
    for i in range(len(sub)):
        newkeyfield[sub[i]] = keyfield[i]
    newkeyfield = ''.join(newkeyfield)
    return newkeyfield

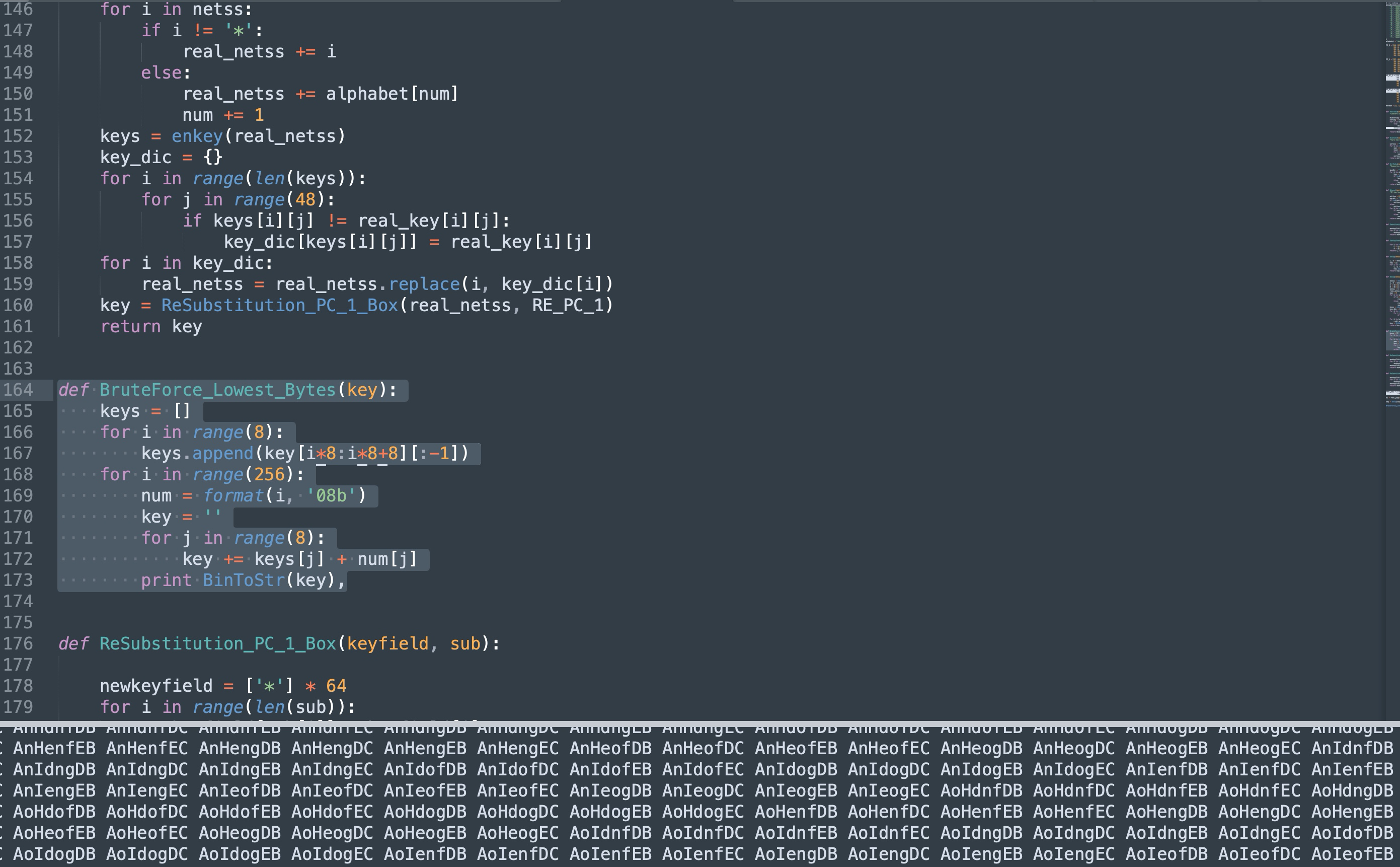

最后我们再对每个字节的最后一位进行爆破:

def BruteForce_Lowest_Bytes(key):
    keys = []
    for i in range(8):
        keys.append(key[i*8:i*8+8][:-1])
    for i in range(256):
        num = format(i, '08b')
        key = ''
        for j in range(8):
            key += keys[j] + num[j]
        print BinToStr(key),

结果:


很遗憾,我无能为力。但是可用密钥中存在anheng字样~只需要尝试三次哦

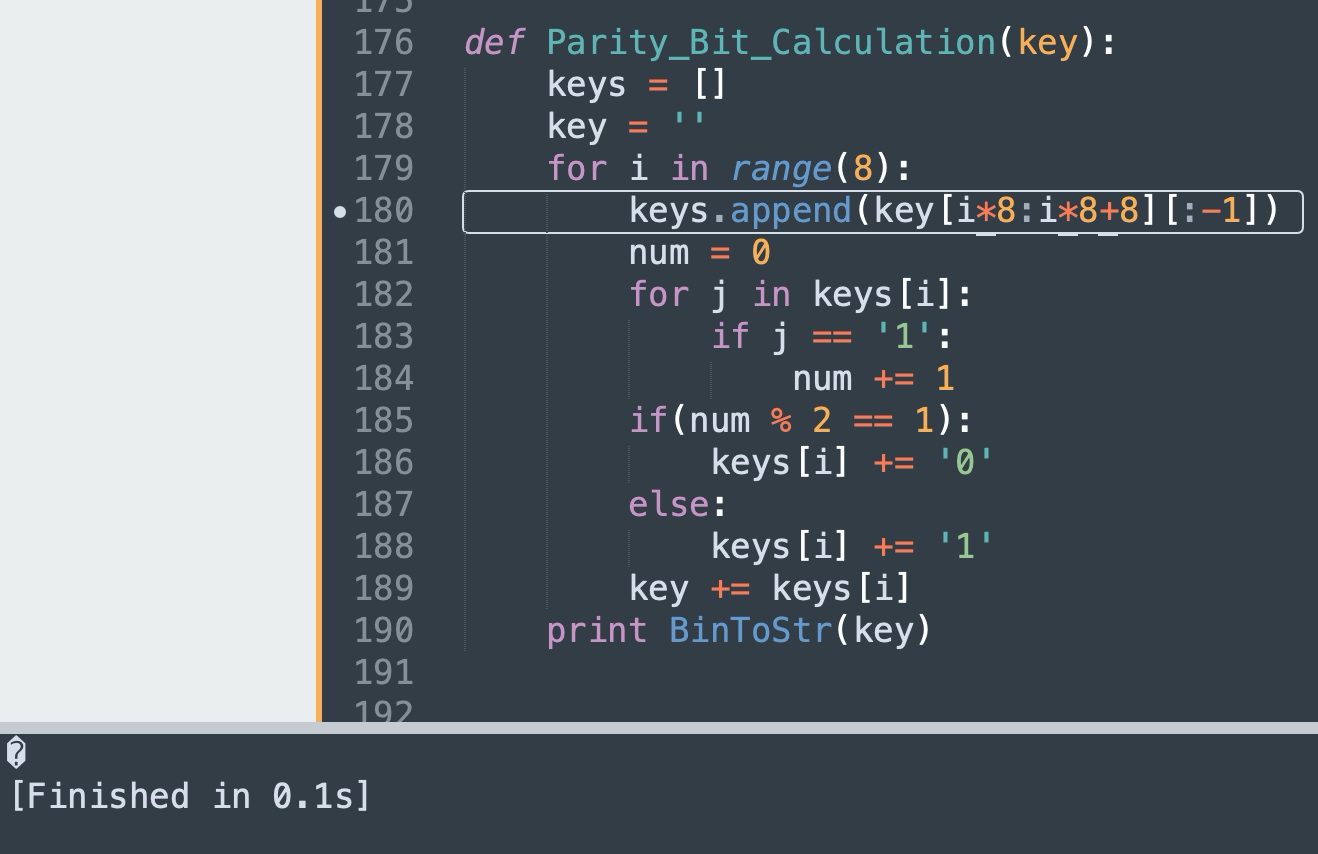

其实,DES中第八位bit应该是奇偶校验位,但是出题人并没有将第八位bit作为奇偶校验位(也就是说我们使用奇偶校验算出来的是错的)

代码如下:

def Parity_Bit_Calculation(key):
    keys = []
    key = ''
    for i in range(8):
        keys.append(key[i*8:i*8+8][:-1])
        num = 0
        for j in keys[i]:
            if j == '1':
                num += 1
        if(num % 2 == 1):
            keys[i] += '0'
        else:
            keys[i] += '1'
        key += keys[i]
    print BinToStr(key)


结果当然是…显而易见…因为密钥在选择的时候就没有遵循奇偶校验规则,所以没有办法靠此种方法恢复密钥。

最终程序:

# -*- coding: utf-8 -*-
hexadecimalcontrast = {
    '0': '0000',
    '1': '0001',
    '2': '0010',
    '3': '0011',
    '4': '0100',
    '5': '0101',
    '6': '0110',
    '7': '0111',
    '8': '1000',
    '9': '1001',
    'a': '1010',
    'b': '1011',
    'c': '1100',
    'd': '1101',
    'e': '1110',
    'f': '1111',
}
alphabet = 'abcdefghijklmnopqrstuvwxyz'

PC_2 = [14, 17, 11, 24, 1, 5, 3, 28,
        15, 6, 21, 10, 23, 19, 12, 4,
        26, 8, 16, 7, 27, 20, 13, 2,
        41, 52, 31, 37, 47, 55, 30, 40,
        51, 45, 33, 48, 44, 49, 39, 56,
        34, 53, 46, 42, 50, 36, 29, 32, ]

PC_1 = [57, 49, 41, 33, 25, 17, 9, 1,
        58, 50, 42, 34, 26, 18, 10, 2,
        59, 51, 43, 35, 27, 19, 11, 3,
        60, 52, 44, 36, 63, 55, 47, 39,
        31, 23, 15, 7, 62, 54, 46, 38,
        30, 22, 14, 6, 61, 53, 45, 37,
        29, 21, 13, 5, 28, 20, 12, 4, ]

RE_PC_2 = [13, 16, 10, 23,  0,  4, 2, 27,
           14,  5, 20,  9, 22, 18, 11, 3,
           25,  7, 15,  6, 26, 19, 12, 1,
           40, 51, 30, 36, 46, 54, 29, 39,
           50, 44, 32, 47, 43, 48, 38, 55,
           33, 52, 45, 41, 49, 35, 28, 31]

RE_PC_1 = [56, 48, 40, 32, 24, 16, 8,  0,
           57, 49, 41, 33, 25, 17, 9,  1,
           58, 50, 42, 34, 26, 18, 10, 2,
           59, 51, 43, 35, 62, 54, 46, 38,
           30, 22, 14, 6, 61, 53, 45, 37,
           29, 21, 13, 5, 60, 52, 44, 36,
           28, 20, 12, 4, 27, 19, 11, 3]

movnum = [1, 1, 2, 2, 2, 2, 2, 2, 1, 2, 2, 2, 2, 2, 2, 1]


def HexToBin(string):
    "Convert sixteen to binary"

    Binstring = ""
    string = string.lower()
    for i in string:
        try:
            Binstring += hexadecimalcontrast[i]
        except:
            return -1
    return Binstring


def BinToStr(strbin):
    "Turn the binary string to a ASCII string"

    strten = ""
    for i in range(len(strbin) // 8):
        num = 0
        test = strbin[i * 8:i * 8 + 8]
        for j in range(8):
            num += int(test[j]) * (2**(7 - j))
        strten += chr(num)
    return strten


def StrToHex(string):
    "Converts a string to HEX"

    hexStr = ''
    for i in string:
        tmp = str(hex(ord(i)))
        if len(tmp) == 3:
            hexStr += tmp.replace('0x', '0')
        else:
            hexStr += tmp.replace('0x', '')
    return hexStr


def Binxor(string1, string2):
    "If the length is different, only the short one is returned."

    strlen = 0
    xorstr = ""
    if len(string1) > len(string2):
        strlen = len(string2)
    else:
        strlen = len(string1)
    for i in range(strlen):
        if string1[i] == string2[i]:
            xorstr += '0'
        else:
            xorstr += '1'
    return xorstr


def SubstitutionBox(keyfield, sub):  # 置换盒

    newkeyfield = ''
    for i in range(len(sub)):
        newkeyfield += keyfield[sub[i] - 1]  # watch the table
    return newkeyfield


def SubkeyGeneration(freq, C, D):  # 轮密钥生成函数

    for i in range(movnum[freq]):
        C = C[1:] + C[:1]
        D = D[1:] + D[:1]
    return C, D, SubstitutionBox(C + D, PC_2)


def enkey(netss):  # 生成子密钥

    C, D = netss[:28], netss[28:]
    key = []
    for i in range(16):  # 十六轮子密钥生成
        C, D, keyone = SubkeyGeneration(i, C, D)
        key.append(keyone)
    return key


def dekey(netss):  # 还原子密钥

    netss = ReSubstitution_PC_2_Box(netss, RE_PC_2)
    C, D = netss[:28], netss[28:]
    C = C[-1:] + C[:-1]
    D = D[-1:] + D[:-1]
    netss = C + D
    real_netss = ''
    num = 0
    for i in netss:
        if i != '*':
            real_netss += i
        else:
            real_netss += alphabet[num]
            num += 1
    keys = enkey(real_netss)
    key_dic = {}
    for i in range(len(keys)):
        for j in range(48):
            if keys[i][j] != real_key[i][j]:
                key_dic[keys[i][j]] = real_key[i][j]
    for i in key_dic:
        real_netss = real_netss.replace(i, key_dic[i])
    key = ReSubstitution_PC_1_Box(real_netss, RE_PC_1)
    return key


def BruteForce_Lowest_Bytes(key):
    keys = []
    for i in range(8):
        keys.append(key[i*8:i*8+8][:-1])
    for i in range(256):
        num = format(i, '08b')
        key = ''
        for j in range(8):
            key += keys[j] + num[j]
        print BinToStr(key),


def Parity_Bit_Calculation(key):
    keys = []
    key = ''
    for i in range(8):
        keys.append(key[i*8:i*8+8][:-1])
        num = 0
        for j in keys[i]:
            if j == '1':
                num += 1
        if(num % 2 == 1):
            keys[i] += '0'
        else:
            keys[i] += '1'
        key += keys[i]
    print BinToStr(key)


def ReSubstitution_PC_1_Box(keyfield, sub):

    newkeyfield = ['*'] * 64
    for i in range(len(sub)):
        newkeyfield[sub[i]] = keyfield[i]
    newkeyfield = ''.join(newkeyfield)
    return newkeyfield


def ReSubstitution_PC_2_Box(keyfield, sub):

    newkeyfield = ['*'] * 56
    for i in range(len(sub)):
        newkeyfield[sub[i]] = keyfield[i]
    newkeyfield = ''.join(newkeyfield)
    return newkeyfield


real_key = ['101000001001011001000110001110110000011110011000', '111000000011011001010010100101100011011000100110', '011001001101011001110000001111000000101111100100', '110001101101000101010010000100001110100011010011', '001011101100001101010011011001111010010000010001', '001011110101000100001011101010110010010101001010', '001010110000000111011001001011001101001100000110', '000111010100100010011001010101000100010011100110',
            '000111010100100111001000010000001111100101010100', '000100100110100110001101011000011010010010111000', '000110010010110100000101111010010001110000001011', '010000010010110010101101000011100101001000111110', '110100011010010010100100000101010101100111100100', '110100001000111010100010100000001000100011110001', '111100001011001000100110110000111010111000010101', '101000001011111000100110101000011001001000001011']

# real_key 存放16轮真实子密钥

K1 = real_key[0]

key = dekey(K1)

# Parity_Bit_Calculation(key) #奇偶校验
# BruteForce_Lowest_Bytes(key) #暴力破解

4.总结

通过这道CTF题目,让我更深刻的理解了DES加密原理,以前从未考虑过使用子密钥还原真实密钥。在使用最终程序的时候只需要修改real_key数组即可。在对于这道CTF题目的延伸上我们是否可以去思索如果题目只给定了16轮密钥中一轮,我们应该怎么做呢?

5.致谢

本文引用了以下文章,感谢网友的分享:

https://limbenjamin.com/articles/des-key-parity-bit-calculator.html
https://stackoverflow.com/questions/7149944/how-can-i-check-the-parity-of-a-des-key
https://xz.aliyun.com/t/3101#toc-4
https://crypto.stackexchange.com/questions/34199/purpose-of-des-parity-bits
https://www.cxyxiaowu.com/1478.html
