为Elastalert增加参数遍历、周期性检测 – 作者:Shell.

由于AWS流量镜像的特殊性,现阶段生产网的架构中只接入了HTTP与DNS流量,分别采用了Zeek与Suricata对现有流量进行分析与预警。Suricata负责基于签名的特征检测,Zeek负责定制化事件的脚本检测,也算是“各司其职”。近几日,某个业务接口出现了Pindom告警,经过分析发现部分IP尝试对该接口的参数进行遍历。由于遍历参数对应的值设置的都比较大,且后台并未对该参数进行深度的限制,导致了服务器会不断的进行计算,最终导致接口无响应。

需求

– 检测参数遍历行为;

– 访问是否存在周期性;

– unique user_agent 统计;

– threat intelligence 研判;

实现

通过扩展ElastAlert告警框架的告警模型,来实现以上需求。

规则文件

import sys
import json
import redis
import html
import datetime
from multiprocessing import Process, JoinableQueue, Lock, Manager

from elastalert.ruletypes import RuleType
from elastalert.util import elastalert_logger

try:
    import pandas as pd
except:
    print("Please make sure you have pandas installed. pip install pandas")
    sys.exit(0)

try:
    from tqdm import tqdm
except:
    print("Please make sure you have tqdm module installed. pip install tqdm")
    sys.exit(0)


def conn(host='localhost', port=6379, password=None, db=0):
    pool = redis.ConnectionPool(host=host, port=port, password=password, db=db)
    conn = redis.Redis(connection_pool=pool)
    return conn


def put_data(conn, q, data):
    with conn.pipeline() as pipe:
        for i in data:
            pipe.lpush(q, i)
        pipe.execute()


class SpiderRule(RuleType):
    def __init__(self, rules, args=None):
        super(SpiderRule, self).__init__(rules, args=None)
        self.MAX_ARGS_LENGTH = int(self.rules['beacon']['max_args_length'])
        self.MIN_HITS = int(self.rules['beacon']['min_hits'])
        self.MAX_UNIQUE_ARGS = int(self.rules['beacon']['max_unique_args'])
        self.THRESHOLD_PERCENT = int(self.rules['beacon']['threshold_percent'])
        self.NUM_PROCESSES = int(self.rules['beacon']['threads'])
        self.UA_PROCESSES = int(self.rules['beacon']['user_agent'])

        self.TIMESTAMP = '@timestamp'
        self.FORMAT_TIMESTAMP = self.rules['timestamp'].get('format', None)

        self.beacon_module = self.rules['beacon']['beacon_module']
        self.WINDOW = int(self.rules['beacon']['window'])
        self.MIN_INTERVAL = int(self.rules['beacon']['min_interval'])
        buffer_time = str(self.rules['buffer_time'])
        self.PERIOD = ':'.join(buffer_time.split(':')[:2])

        self.fields = self.normalized_field(self.rules['field'])
        self.src_ip = self.fields['aliases']['src_ip']
        self.url = self.fields['aliases']['url']
        self.url_path = self.fields['aliases']['url_path']
        self.http_host = self.fields['aliases']['http_host']
        self.user_agent = self.fields['aliases']['user_agent']

        self.json = self.rules['output']['json'].get('enable', None)
        self.redis = self.rules['output']['redis'].get('enable', None)

        self.q_job = JoinableQueue()
        self.l_df = Lock()
        self.l_list = Lock()

    def normalized_field(self, d):
        fields = {'hash': [], 'output': [], 'aliases': {}}
        for field, info in d.items():
            alias = info['alias']
            fields['aliases'][alias] = field
            for i in info.get('type', []):
                fields[i].append(field)
        return fields

    def add_data(self, data):
        # Detection of spider crawlers
        self.df = pd.json_normalize(data)
        results = self.find_spiders()

        d = results.to_dict(orient="records")

        # Output to local files
        if self.json:
            json_path = self.rules['output']['json']['path']
            with open(json_path, 'a') as out_file:
                for i in d:
                    out_file.write(json.dumps(i) + '\n')

        # Output to Redis Server
        if self.redis:
            try:
                host = self.rules['output']['redis']['host']
                port = self.rules['output']['redis']['port']
                password = self.rules['output']['redis']['password']
                db = self.rules['output']['redis']['db']
                key = self.rules['output']['redis']['key']
                ioc = self.rules['output']['redis']['field']

                redis_conn = conn(host=host, port=port,
                                  password=password, db=db)
                IoC = results[ioc].unique().tolist()
                put_data(redis_conn, key, IoC)
            except:
                elastalert_logger.error("Output Redis configuration errors.")
        self.add_match(d)

    # The results of get_match_str will appear in the alert text
    def get_match_str(self, match):
        return json.dumps(match)

    def add_match(self, results):
        for result in results:
            super(SpiderRule, self).add_match(result)

    def get_args_hash(self, args, session_id):
        return hash(tuple(args + [session_id]))

    def get_query_str(self, request):
        query = request.split('?')[-1]
        query_str = dict([i.split("=", 1) for i in query.split(
            "&") if i if len(i.split("=", 1)) == 2])
        query_str['args_list'] = list(query_str.keys())
        query_str['max_length'] = len(query_str)
        query_str['url_sample'] = request
        return query_str

    def percent_grouping(self, d, total):
        interval = 0
        # Finding the key with the largest value (interval with most events)
        mx_key = int(max(iter(list(d.keys())), key=(lambda key: d[key])))
        mx_percent = 0.0

        for i in range(mx_key - self.WINDOW, mx_key + 1):
            current = 0
            # Finding center of current window
            curr_interval = i + int(self.WINDOW / 2)

            for j in range(i, i + self.WINDOW):
                if j in d:
                    current += d[j]

            percent = float(current) / total * 100
            if percent > mx_percent:
                mx_percent = percent
                interval = curr_interval

        return interval, mx_percent

    def find_beacon(self, session_data):
        beacon = {}

        if not self.FORMAT_TIMESTAMP:
            session_data[self.TIMESTAMP] = pd.to_datetime(
                session_data[self.TIMESTAMP])
        else:
            session_data[self.TIMESTAMP] = pd.to_datetime(
                session_data[self.TIMESTAMP], format=self.FORMAT_TIMESTAMP)
        session_data[self.TIMESTAMP] = (
            session_data[self.TIMESTAMP].astype(int) / 1000000000).astype(int)

        session_data = session_data.sort_values([self.TIMESTAMP])
        session_data['delta'] = (
            session_data[self.TIMESTAMP] - session_data[self.TIMESTAMP].shift()).fillna(0)
        session_data = session_data[1:]
        d = dict(session_data.delta.value_counts())

        for key in list(d.keys()):
            if key < self.MIN_INTERVAL:
                del d[key]

        # Finding the total number of events
        total = sum(d.values())
        if d and total > self.MIN_HITS:
            window, percent = self.percent_grouping(d, total)
            if percent > self.THRESHOLD_PERCENT and total > self.MIN_HITS:
                beacon = {
                    'percent': int(percent),
                    'interval': int(window),
                }

        return beacon

    def find_spider(self, q_job, spider_list):
        while not q_job.empty():
            session_id = q_job.get()
            self.l_df.acquire()
            session_data = self.df[self.df['session_id']
                                   == session_id]
            self.l_df.release()

            query_str = session_data[self.url].apply(
                lambda req: self.get_query_str(req)).tolist()
            query_data = pd.DataFrame(query_str)

            # get args_hash
            query_data['args_hash'] = query_data['args_list'].apply(
                lambda args: self.get_args_hash(args, session_id))

            for i in query_data['args_hash'].unique():
                result = {
                    "detail": {
                        'percent': {},
                        'unique': {}
                    },
                    "tags": [],
                    "src_ip": session_data[self.src_ip].tolist()[0],
                    "url_path": session_data[self.url_path].tolist()[0],
                    "http_host": session_data[self.http_host].tolist()[0],
                    "unique_ua": session_data[self.user_agent].unique().shape[0],
                    "alert": False,
                }

                df = query_data[query_data['args_hash'] == i]
                count_args_length = df['max_length'].iloc[0]
                if count_args_length > self.MAX_ARGS_LENGTH:
                    continue

                total_hits = df.shape[0]
                if total_hits < self.MIN_HITS:
                    continue

                args_list = df['args_list'].iloc[0]
                for i in args_list:
                    unique_args = len(df[i].unique())
                    if unique_args == 1:
                        continue

                    # Calculate the percentage based on the number of changes in the parameters
                    current_percent = int((unique_args / total_hits) * 100)
                    if current_percent < self.THRESHOLD_PERCENT:
                        continue

                    result['detail']['percent'][i] = current_percent
                    result['detail']['unique'][i] = unique_args

                    # Number of parameters with changes
                    count_unique_args = len(result['detail']['unique'])
                    if count_unique_args <= self.MAX_UNIQUE_ARGS:
                        result['alert'] = True

                if not result['detail']['unique']:
                    continue

                # Beacon analysis
                if self.beacon_module:
                    result['beacon'] = self.find_beacon(
                        session_data.reset_index(drop=True))

                result['args_list'] = args_list
                result['total_hits'] = total_hits
                result['url_sample'] = df['url_sample'].iloc[0]
                result['period'] = self.PERIOD

                if result['alert']:
                    result['tags'].append('enumerate')

                if result['beacon']:
                    result['tags'].append('beacon')

                if result['unique_ua'] >= self.UA_PROCESSES:
                    result['tags'].append('suspicious-ua')

                self.l_list.acquire()
                spider_list.append(result)
                self.l_list.release()
            q_job.task_done()

    def find_spiders(self):
        if self.df.empty:
            raise Exception(
                "Elasticsearch did not retrieve any data. Please ensure your settings are correct inside the config file.")

        tqdm.pandas(desc="Detection of Spider Crawlers.")

        # get url_path
        self.df[self.url_path] = self.df[self.url].str.split('?').str.get(0)

        # add session_id from hash fields
        self.df['session_id'] = self.df[self.fields['hash']
                                        ].progress_apply(lambda row: hash(tuple(row)), axis=1)
        # split url
        self.df = self.df[self.df[self.url].apply(lambda request: True if len(
            request.split('?')) == 2 else False)].reset_index(drop=True)
        # normalized url
        self.df[self.url] = self.df[self.url].apply(
            lambda request: html.unescape(request))
        # unique session_id
        unique_session = self.df['session_id'].unique()

        for session in unique_session:
            self.q_job.put(session)

        mgr = Manager()
        spider_list = mgr.list()
        processes = [Process(target=self.find_spider, args=(
            self.q_job, spider_list,)) for thread in range(self.NUM_PROCESSES)]

        # Run processes
        for p in processes:
            p.start()

        # Exit the completed processes
        for p in processes:
            p.join()

        results = pd.DataFrame(list(spider_list))

        # add timestamp
        now = datetime.datetime.now().isoformat()
        results['timestamp'] = now

        if not results.empty:
            results = results[results['alert'] == True]

        match_log = "Queried rule %s matches %s crawl events" % (
            self.rules['name'],
            results.shape[0]
        )
        elastalert_logger.info(match_log)

        return results

配置文件

Web.yaml

name: "Detection of Spider Crawlers"
es_host: "es_server"
es_port: 9200
type: "elastalert_modules.spider.my_rules.SpiderRule"

index: "zeek-other-%Y.%m.%d"
use_strftime_index: true

filter:
- term:
    host: "canon88.github.io"
- term:
    method.keyword: "GET"

include: ["true_client_ip", "host", "uri", "uri_path", "user_agent"]

timestamp:
  format: false
timestamp_field: "@timestamp"

buffer_time:
  hours: 12

run_every:
  minutes: 10

max_query_size: 10000
scroll: true

beacon:
  max_args_length: 10		# 最大检测参数个数
  min_hits: 120					# 最小命中事件数
  max_unique_args: 2		# 最大动态变化参数
  threshold_percent: 70	# 请求阈值百分比
  threads: 16						# 多进程
  beacon_module: true		# 开启周期性检测
  min_interval: 1				# 最小周期
  window: 2							# 抖动窗口
  user_agent: 20				# 唯一UA个数

field:
  true_client_ip:
    alias: src_ip
    type: [hash]
  host:
    alias: http_host
    type: [hash]
  uri_path:
    alias: url_path
    type: [hash]
  uri:
    alias: url
  user_agent:
    alias: user_agent

output:
  json:
    enable: yes	# 本地输出
    path: /var/log/spider/spider_detect.json
  redis:
    enable: no	# 输出至Redis,联动情报数据进行研判。
    host: redis_server
    port: 6379
    db: 0
    password: redis_password
    key: spider:feeds
    field: src_ip

alert:
- debug

告警输出

{
  "detail": {
    "percent": {
      "cookieid": 81
    },
    "unique": {
      "cookieid": 133
    }
  },
  "tags": [
    "enumerate", // 存在参数遍历行为
    "suspicious-ua"	// user_agent 超过阈值
  ],
  "src_ip": "54.160.169.250",
  "url_path": "/image/cookieId.html",
  "http_host": "canon88.github.io",
  "unique_ua": 47,
  "alert": true,
  "beacon": {},
  "args_list": [
    "cookieid"
  ],
  "total_hits": 164,
  "url_sample": "/image/cookieId.html?cookieid=E99A3E54-5A81-2907-1372-339FFB70A464",
  "period": "1:00",
  "timestamp": "2020-06-02T11:07:59.276581"
}

告警简述

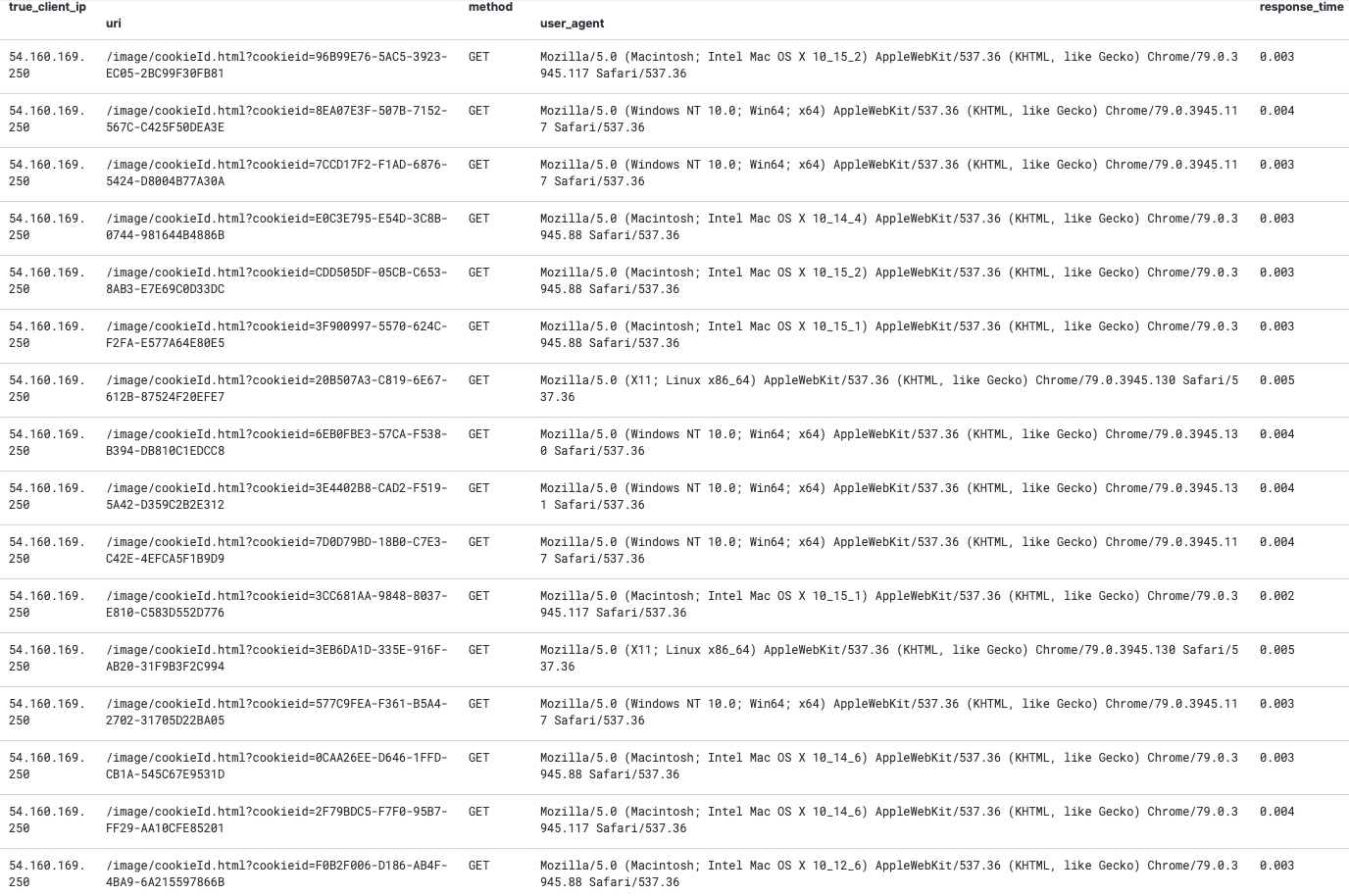

根据以上告警内容。1小时内 IP: 54.160.169.250 总共访问了该接口164次且cookieid参数更换了133次,占到总请求量的81%。并更换了47个不同的user_agent。


写在最后

find_spider: 用于检测参数遍历的行为,这里加上find_beacon是为了增加一个周期性的检测维度。当然很多爬虫都会「自带」时间抖动,以及使用爬虫池,所以效果并不是特别明显。

find_beacon: 更适用于检测C2连接,例如针对DNS域名的请求这种情况,这里有一个检测到的域名周期性请求的告警:

{
    "src_ip": "x.x.x.228",
    "hostname": "entitlement.service.imperva.com",
    "answers": [
        "joxkwsf.x.incapdns.net",
        "45.60.73.51"
    ],
    "percent": "100",
    "interval": 1800,
    "occurrences": 23,
    "timestamp": "2020-06-01T08:03:38.164363",
    "period": 12,
    "event_type": "beaconing",
    "num_hits": 806379,
    "num_matches": 3,
    "kibana_url": "https://canon88.github.io/goto/5f089bcc411426b854da71b9062fdc8c"
}

DNS周期性请求

周期性DNS请求截图-1.png参考

Flare

ElastAlert

*本文作者:Shell.,转载请注明来自FreeBuf.COM

来源:freebuf.com 2020-06-25 09:00:06 by: Shell.

© 版权声明
THE END
喜欢就支持一下吧
点赞0
分享
评论 抢沙发

请登录后发表评论
